门式起重机厂家生产的龙门吊产品简介：

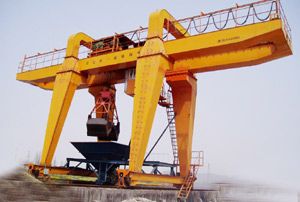

抓斗双梁门式起重机适用露天仓库、料场、铁路货站、港口码头等装卸搬运。 起重机有桥架、大车运行机构、小车、电器设备等组成。桥架采用箱型双梁焊接结构，大车运行机构采用分别驱动，全部机构均在操纵室操纵。 起重量 Lifting Weight | t | 10 | |||||||
跨度 Span | S | m | 18 | 22 | 26 | 30 | 35 | ||
重级工作制度 Heavy work system | 起升高度 Lifting Height | 轨上 10M/轨下 10M | |||||||
速度 Speed | 起升/关闭 Life/open and colse | m/min | 40.92/40.92 | ||||||
小车运行 handcart travel | 49.6 | ||||||||
大车运行 cart travel | 46.9 | 39.7 | 30.5 | ||||||
电动机Motor | 起升/关闭 Life/open and colse | 型号/KW Model | YZR280M-10Z/YZR280M-10Z | ||||||
小车运行 handcart travel | YZR160M1-6 | ||||||||
大车运行 cart travel | YZR160L-6 | ||||||||
重量 Weight | 小车 handcart | t | 17.7 | ||||||
起重机重量 Total weight for crane | 96.9 | 112.7 | 116.5 | 131.7 | 137.5 | ||||
起重机*大轮压 Max wheel pressure for crane | 36.6 | 22.3 | 22.7 | 25.8 | 26.6 | ||||
主要部分尺寸 Main size | 大车轮距 Cart wheel distance | BQ | mm | 9500 | 8000 | ||||
小车轮距 handcart wheel distance | Bx | 3190 | |||||||
宽度 Width | B | 11388 | 12388 | ||||||
起重机*大高度 Crane max.height | H | 18000 | 18040 | 18080 | |||||
左臂伸长 Left arm length | L1 | 7700 | 9850 | 11850 | |||||
右臂出度 | L2 | 9300 | 10450 | 11950 | |||||
导电架*外尺寸 Conductor frame outer size | L3 | 10680 | 11830 | 13180 | |||||
大车轨面至小车轨面的距离 Distance between cart and handcart | H1 | 15000 | |||||||
缓冲器高度 Buffer unit height | H2 | 760 | 880 | ||||||
主梁底面至大车轨面距离 Distamce between main beam and cart | H3 | 13577 | 13277 | 12977 | |||||
抓斗底面至大车轨面*大高度 Max.height between grab and cart track | H4 | 1000 | |||||||
小车轨面至抓斗底面距离 Distance between handcart track and grab | H5 | 13262 | 13062 | 13262 | |||||
煤斗车*大高度 Max.height for coal gogie | h | 5000 | |||||||
煤斗车*大高度 Max.height for coal gogie | h1 | 6470 | |||||||
*限尺寸 Limit size | S1 | 5000 | 7000 | 9000 | |||||
S2 | 2500 | 3500 | 5000 | ||||||
抓斗 Grab | 抓斗至操纵室距离 Distance between grab and operation room | a | 1502 | 1500 | 1252 | 1104 | |||
张开后长度 Length after opening | L | 3200 | 3520 | 3200 | 3700 | ||||
宽度 Width | b | 1460 | 1504 | 1960 | 2256 | ||||
容量 Volume | m3 | 2 | 2 | 3 | 6 | ||||
容重 Density of material | t/m3 | 2-3 | 2.7 | 1-2 | 0.8-0.1 | ||||
荐用大车轨道型号 Cart track type | kg/m | 43 | |||||||
